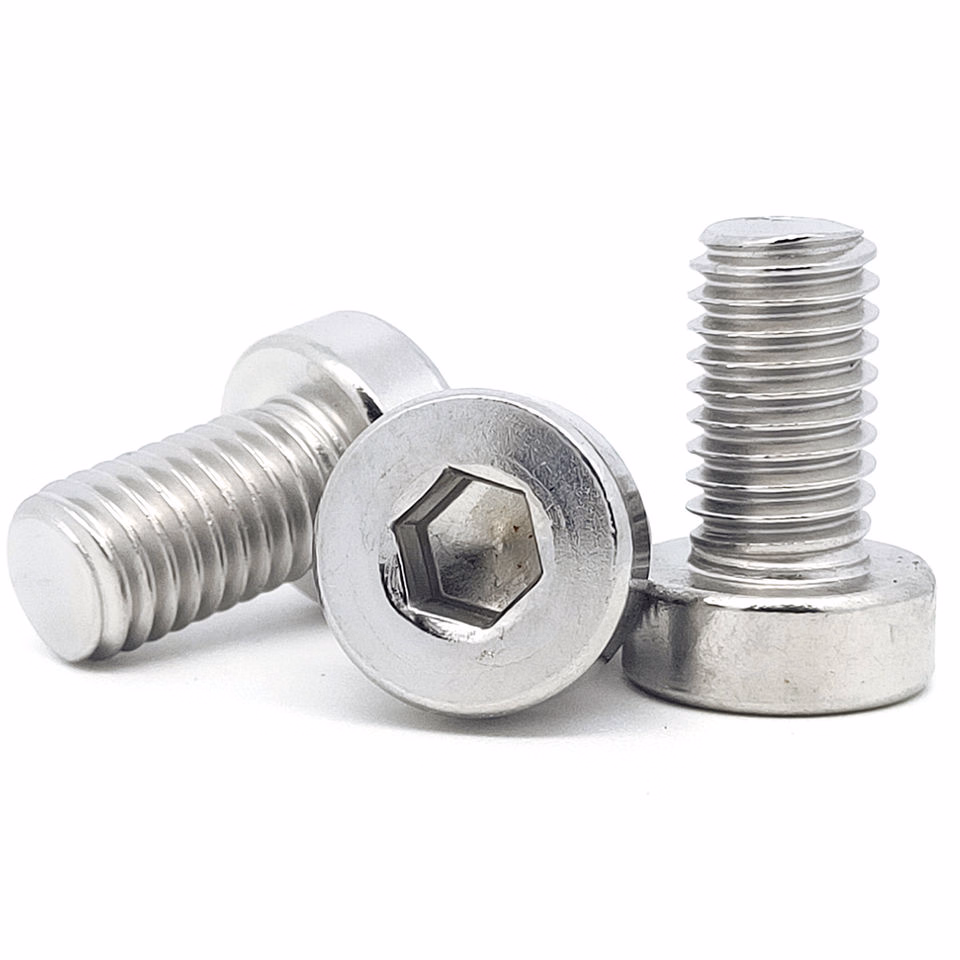

Stainless Steel Small Head Allen Cap

Choosing the Right Small Head Allen Cap

(Low Head Socket Head Cap Screw – “Thin Head” Allen Cap)

1) What is a small head Allen cap & when to use it?

A small head (low head / thin head) Allen cap screw is a socket head cap screw with a reduced head height and an internal hex (Allen) drive.

Compared to a standard socket head cap screw, it has:

Smaller head height (thinner head)

Often a slightly larger head diameter to compensate

Lower head strength & wrench depth, but improved clearance

Use a small head Allen cap when you need:

Limited space above the surface – low vertical clearance

To avoid interference with moving parts, covers, slides, or adjacent components

The strength of a socket screw in a compact head form, but not as high as a full socket cap

Typical applications:

Machine designs with tight headroom, guard slots, or sliding covers

Assemblies under covers or in recesses where tall heads will foul

Tooling, fixtures, and jigs where space is constrained but Allen drive is needed

Automotive and automation where compact head design is specified

2) Environment & corrosion

Indoor / dry / machinery & tooling:

Use alloy steel low head socket screws, usually black-oiled or zinc plated.

Ideal for fixtures, machinery, automation equipment, jigs in non-corrosive environments.

Outdoor / damp / general stainless use:

Use A2 (SS 304) small head socket screws.

Suitable for stainless fabrications, outdoor mechanisms, and food equipment where head height must be low.

Marine / chloride / chemical / wash-down:

Use A4 (SS 316) small head socket screws.

For coastal installations, marine machinery, chemical plant equipment, food & pharma wash-down systems with clearance limitations.

Quick rule:

Space constraint + dry, industrial → Alloy steel small head Allen cap.

Space constraint + corrosive environment → A2 / A4 stainless small head Allen cap.

3) Head style – small head vs standard socket head vs button head

Small head Allen cap (low head):

Reduced head height, internal hex socket.

Still a “technical” head (not just decorative).

Designed for tight spaces where a standard socket head is too tall.

Standard socket head cap (DIN 912):

Full-height cylindrical head, deep hex socket.

Highest strength and torque capacity among the three.

Use when there is enough headroom and joint is highly loaded.

Button head (button Allen cap):

Wide, dome-shaped, low-profile head.

More aesthetic, but with shallower hex and lower strength than standard socket.

Used mainly where appearance and smoothness are important.

Typical selection:

Max strength, less concern about head height → standard socket head cap.

Low profile + aesthetic finish, medium loads → button head.

Low height for clearance, technical machine joint → small head Allen cap.

Mechanical Properties (Guide) – Small Head Allen Cap Screws

Material properties are similar to other socket screws of the same property class, but head geometry reduces the practical torque limit compared to full-height socket heads.

1) Alloy steel small head socket screws (8.8 / 10.9 / 12.9)

Approximate minimum mechanical properties (shank):

Class 8.8

Tensile strength ≈ 800 MPa

Yield strength ≈ 640 MPa

Class 10.9

Tensile strength ≈ 1000 MPa

Yield strength ≈ 900 MPa

Class 12.9

Tensile strength ≈ 1200 MPa

Yield strength ≈ 1080 MPa

Behaviour:

Shank strength is high and comparable to standard socket heads of the same class.

However, due to thinner head and shallower hex:

Recommended tightening torques are lower.

The failure mode may be head rounding or head cracking if overtightened.

Use them where you need high-strength screw in a height-constrained area, but for extreme clamping loads prefer a full socket head.

2) Stainless steel small head socket screws (A2-70 / A4-70 / A4-80)

Typical minimum properties:

A2-70 / A4-70

Tensile strength ≈ 700 MPa

Proof strength ≈ 450 MPa

A4-80

Tensile strength ≈ 800 MPa

Proof strength ≈ 600 MPa

Behaviour:

Excellent corrosion resistance with moderate to good mechanical strength.

Combined with low head design, they are perfect for stainless machines, enclosures and structures with tight clearances.

As with all stainless, watch for thread galling – use lubrication and metric coarse threads, and avoid excessive speed/impact tightening.
