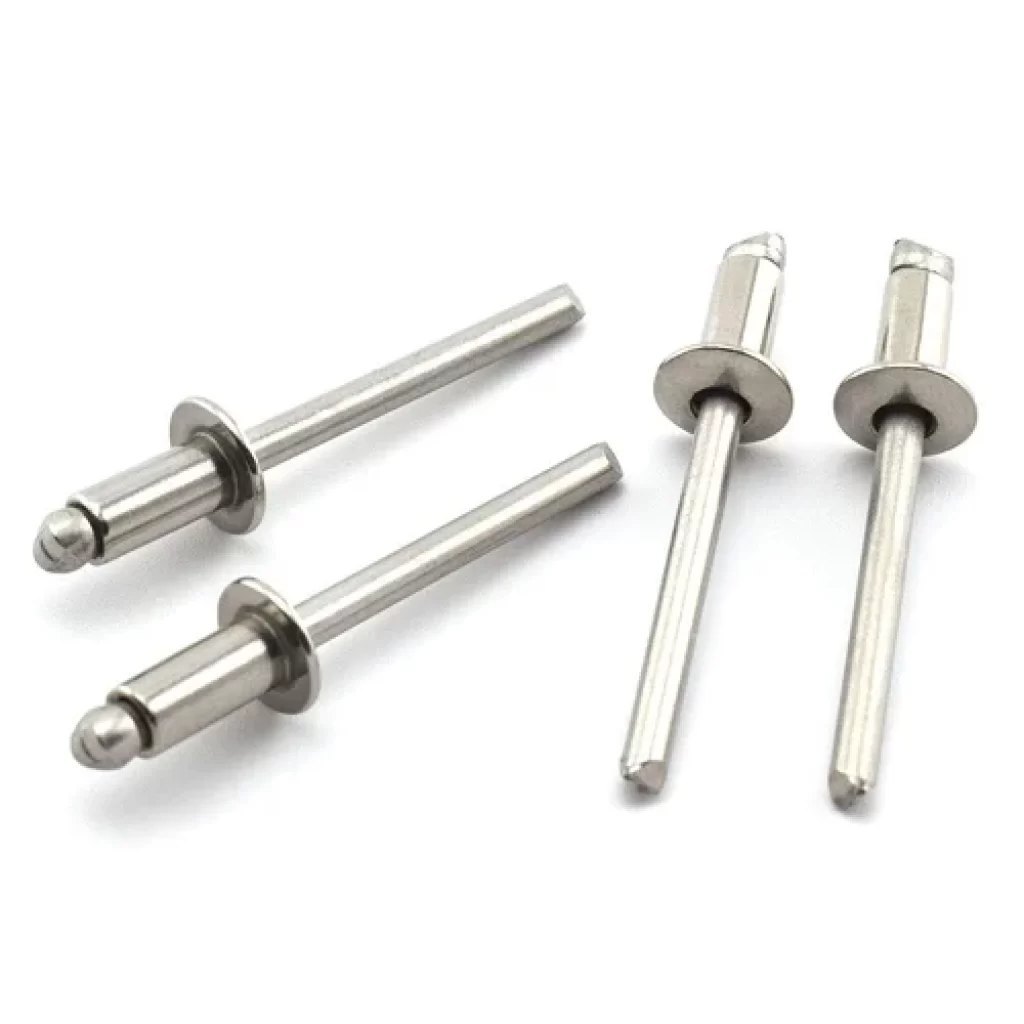

Stainless Steel Pop Rivets

Choosing the Right Pop Rivet (Blind Rivet)
1) What is a pop rivet & when to use it?

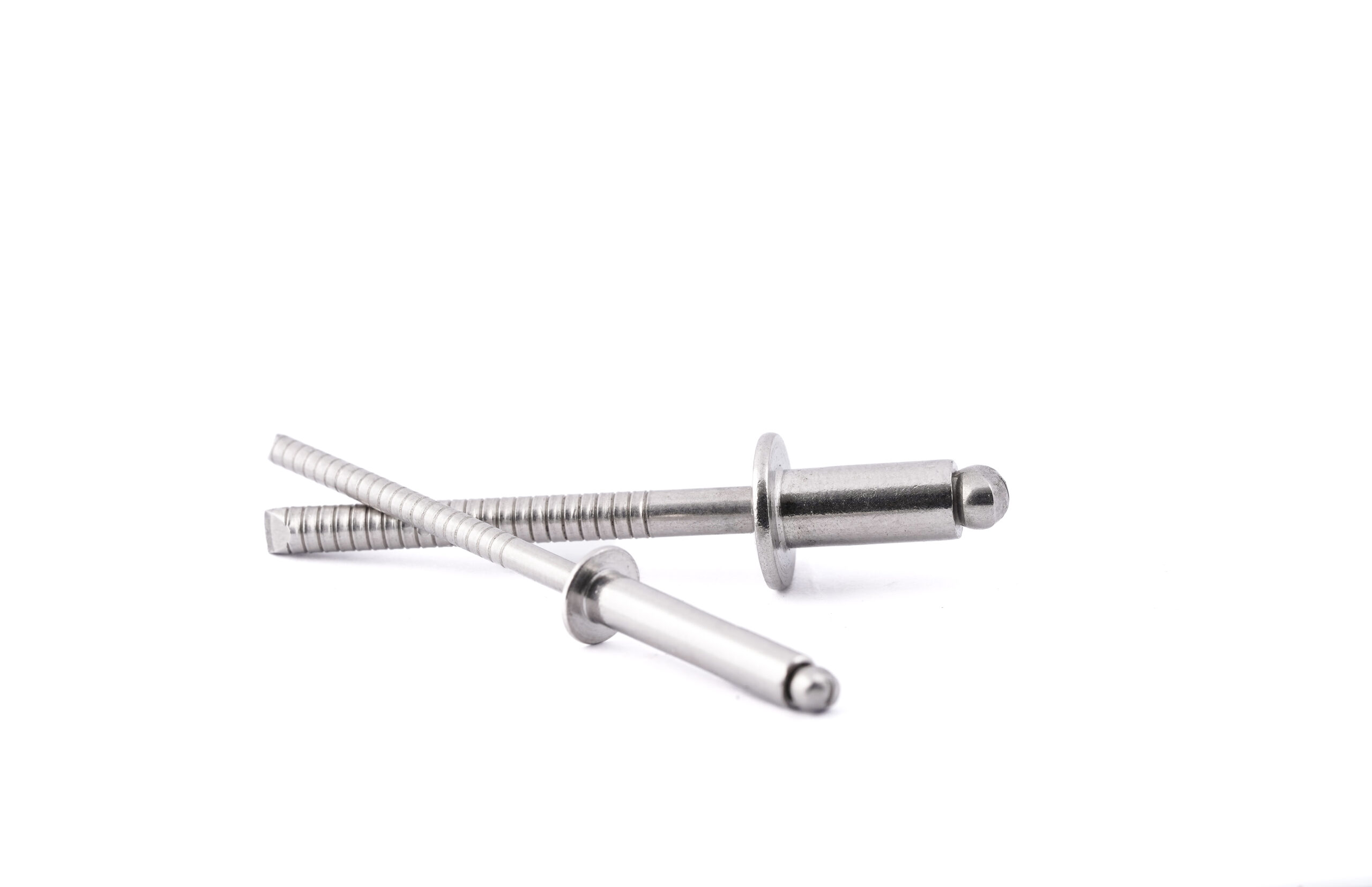

A pop rivet (blind rivet) is a two-piece fastener consisting of:

A rivet body (shell) inserted through the hole, and

A mandrel (stem) that is pulled by a rivet gun to expand and form the closing head.

Use pop rivets when:

You only have access from one side of the joint (blind side inaccessible).

You want a permanent, vibration-resistant fastening.

Welding, screwing or bolting is not practical or economical.

Typical applications:

Sheet metal fabrication (enclosures, cabinets, ducts, panels)

Automotive and bodywork

HVAC, cladding, roofing, signage

Appliances, electrical panels, light structural brackets

2) Material selection – body & mandrel

Choosing the right material combination is critical for strength and corrosion:

Common combinations

Aluminium body / steel mandrel

Light weight, easy setting, good for aluminium sheets and general indoor use.

All-aluminium (aluminium body + aluminium mandrel)

Maximum corrosion compatibility with aluminium parts, non-magnetic, used in light-duty, non-structural applications.

Steel body / steel mandrel (plated)

Higher shear & tensile strength, common in automotive & general steel fabrications.

Usually zinc-plated for basic corrosion resistance.

Stainless steel body / stainless mandrel

Best corrosion resistance and strength, ideal for marine, outdoor, food, and chemical environments.

Simple selection:

For aluminium panels, light indoor work → Alu/steel or all-alu pop rivet.

For general steel fabrications → Steel/steel pop rivet.

For harsh, marine, chemical, or stainless fabrications → A2/A4 stainless/stainless pop rivet.

Try to match rivet material to the sheets to reduce galvanic corrosion.

3) Grip range – the most important dimension

Every pop rivet size has a grip range: the minimum and maximum total material thickness it can clamp.

Example:

4.0 × 10 mm rivet → Grip range: 3–5 mm (just an example).

How to choose:

Add the thickness of all sheets being joined:

e.g. 1.5 mm + 2.0 mm = 3.5 mm total.

Select a rivet whose grip range covers 3.5 mm.

Do not choose a rivet where total thickness is below the minimum or above the maximum grip range.

If grip is too short → poor clinch, loose joint.
If grip is too long → rivet may not form correctly, weak or incomplete closure.

4) Diameter – hole size & joint strength

Pop rivets are specified by body diameter (e.g. 3.2 mm, 4.0 mm, 4.8 mm, 6.4 mm).

Hole size must match the rivet spec (usually slightly larger than rivet diameter).

E.g. 4.0 mm rivet → ~4.1–4.2 mm hole (refer to manufacturer data).

Guideline:

Thin sheets, light duty → 3.0 / 3.2 mm

General sheet metal, light structural brackets → 4.0 / 4.8 mm

Heavier duty, thicker stacks → 4.8 / 6.4 mm

Larger diameter = higher shear & tensile capacity, but always check actual data.

5) Head style – appearance & bearing area

Common head types:

Dome head (standard)

Slightly rounded, general purpose.

Suitable for most applications.

Countersunk / CSK head

Sits flush with the sheet surface after setting.

Good for smooth, flush finishes, sliding surfaces, or where appearance is important.

Large flange head

Larger head diameter to spread the load.

Ideal for soft or thin materials (plastics, thin aluminium, fibreglass) to reduce pull-through.

Selection:

Standard sheet-metal work → Dome head.

Flush surfaces & aesthetics → Countersunk.

Soft/weak materials & oversized holes → Large flange.’

Mechanical Properties (Guide) – Pop Rivets (Blind Rivets)

Pop rivets transfer load via the expanded body and retained mandrel in the joint.
Strength depends on material, diameter, and grip condition.

Typical Behaviour (conceptual – actual values from manufacturer)

For a given nominal size, e.g. 4.8 mm stainless pop rivet:

Shear strength

The load required to slide the plates past each other, cutting through the rivet cross-section.

Tensile strength

The load required to pull the rivet head through or pull off the mandrel joint.

Even for the same diameter, strengths vary greatly between:

Aluminium,

Steel,

Stainless rivets, and

Standard vs structural designs.

Manufacturers provide shear and tensile ratings per size & material; these should be used for critical designs.Stainless Steel Pop Rivets

Highest corrosion resistance and good strength.

Ideal for outdoor, marine, chemical, food & pharma environments.

Higher setting force required; needs more capable tool.

Structural Blind Rivets (if used)
