Choosing the Right SS Pan Phillips Self-Tapping Screw (Guide)
for stainless steel pan head Phillips self-tapping screws

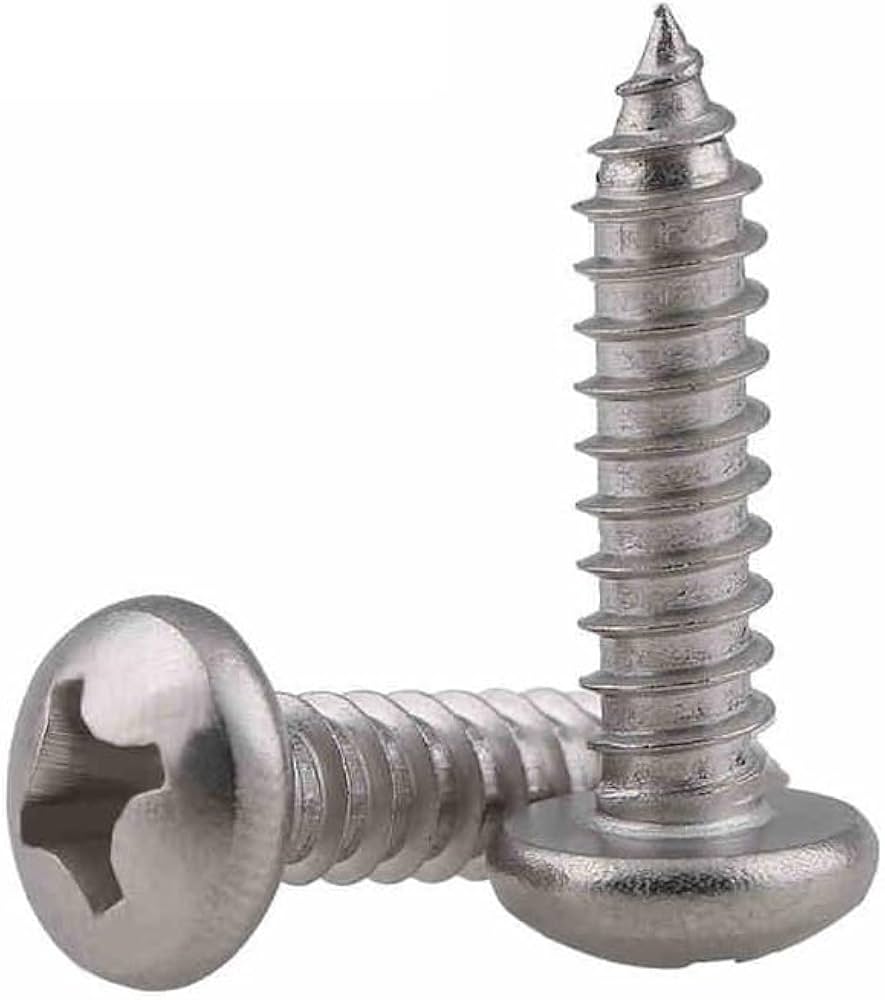

1. What is an SS Pan Phillips Self-Tapping Screw?

An SS pan Phillips self-tapping screw is:

Pan head → low, rounded top with flat bearing surface underneath

Phillips drive → cross recess for PH screwdriver/bit

Self-tapping thread → forms or cuts its own thread in thin sheet metal / plastics

Stainless steel → corrosion-resistant

It is meant to fasten thin sheets or components without a nut, directly into:

Sheet metal (steel, stainless, alu)

Plastics

Thin sections with pre-punched/drilled holes

2. Application & Joint Type
a) Where should you use it?

Choose SS pan Phillips self-tapping screws for:

Electrical panels & enclosures

Sheet-metal cabinets, control boxes, HVAC ducts

Appliances, electronics housings

Light brackets, covers, guards fixed to thin sheet

Plastics and light composites (with correct pilot hole)

Not ideal for:

Thick solid steel (better to tap or use machine screws with nuts)

Heavy structural joints → use hex bolts or socket screws

High-load wood joints → use wood/coach screws instead

3. Environment & Stainless Grade
a) Choose by environment

Normal indoor / mild outdoor / general industrial
→ A2 (SS 304) self-tapping screws

Standard choice, good corrosion resistance

Coastal / marine / high-chloride / chemical
→ A4 (SS 316) self-tapping screws

Better resistance to pitting and chlorides

Ideal for outdoor junction boxes, marine panels, chemical plant enclosures

Only dry indoor, non-critical & cost-sensitive
→ SS 202 may be used if accepted by customer

Lower corrosion resistance — avoid for outdoor/marine

b) Match other hardware

Use same grade as enclosure / hinges / latches when possible, especially in visible or harsh environments.

4. Head Style & Drive – Why Pan Phillips?
a) Pan head

Pan head is chosen because:

It gives a wide bearing surface → good clamping on thin sheets

No need to countersink → just a straight clearance/pilot hole

Head remains visible and slightly proud of the surface

Use pan head when:

Material is thin or you don’t want to reduce thickness by countersinking

Some projection is acceptable

You want a simple, standard look for panels and covers

b) Phillips drive

Phillips (PH):

Very common bits, easy to find

Suitable for manual or low-medium torque power tools

However, it can cam-out at higher torque

For production lines, some customers prefer Pozi (PZ) or Torx for better torque transfer, but Pan Phillips is the classical standard combination.

Mechanical Properties (Guide) – SS Pan Phillips Self-Tapping Screws

Most SS self-tapping screws are made from austenitic stainless steel, similar strength level to A2-70 / A4-70 machine screws, but exact values depend on manufacturer and heat treatment.

A2 (SS 304) Self-Tapping Screws

Material: A2 (≈ SS 304)

Indicative tensile strength: often around 700 MPa range for fastener quality wire (similar to A2-70 concept)

Good ductility → can deform slightly without brittle fracture

Corrosion resistance:

Good in general industrial and outdoor exposure

Suitable for most electrical panels, HVAC, general sheet-metal work

A4 (SS 316) Self-Tapping Screws

Material: A4 (≈ SS 316)

Indicative tensile strength: similar order to A4-70 (~700 MPa tensile)

Corrosion resistance:

Excellent in marine, coastal, poolside, and many chemical environments

Preferred for outdoor enclosures, marine equipment, food & pharma machinery panels

SS 202 Self-Tapping Screws (Where Used)

Material: 200 series Cr-Mn stainless

Mechanical strength can be sufficient for light sheet-metal fastening, but:

Corrosion resistance is lower than 304/316

Use only for low-risk, dry indoor applications.

Note: In real sheet-metal applications, thread engagement and sheet strength usually limit the joint capacity before the stainless screw shank actually fails in tension.

10. Quick Selection Cheat Sheet (Sales / Shop Floor)

Base Material

Thin steel / aluminium sheet → self-tapping is appropriate

Thick solid steel → consider tapping + machine screws instead

Environment

Normal → A2 (304)

Coastal/marine/chemical → A4 (316)

Head & Drive

Need non-countersunk visible head → Pan Phillips self-tapping

Need more torque / reduced cam-out → consider Pozi/Torx variants

Size

Light panels → ~3–3.9 mm

General enclosures → ~4.2–4.8 mm

Heavy sheet/brackets → 5.5–6.3 mm

Hole

Always use proper pilot hole size (never “just drive into solid sheet”)
