Choosing the Right SS CSK Phillips Machine Screw (Guide)
for stainless steel countersunk (CSK) head, Phillips drive, machine screws

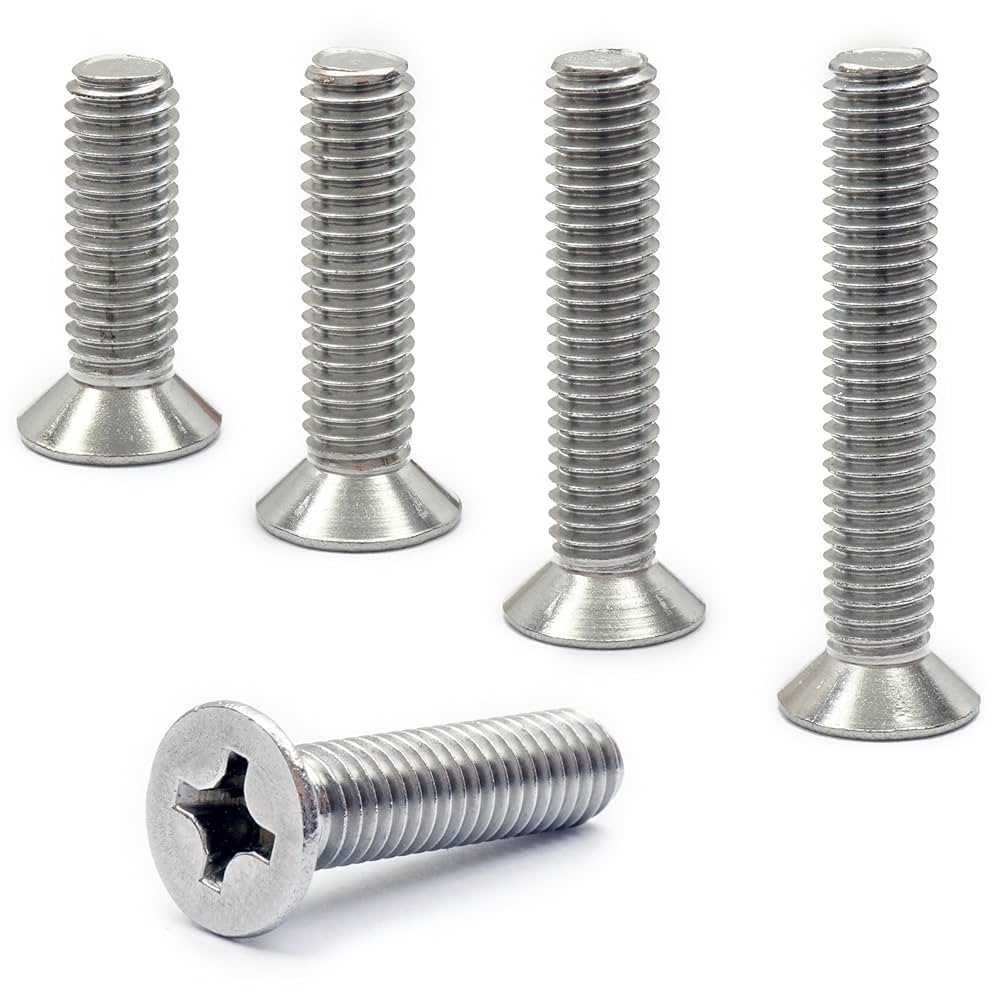

1. What is an SS CSK Phillips Machine Screw?

An SS CSK Phillips machine screw is:

A straight shank, fully (or mostly) threaded screw

With a CSK (countersunk) head – flat, conical head that sits flush with the surface

With a Phillips cross recess (PH) in the head

Designed to be used with a nut or in a tapped (threaded) hole in metal/plastic

It is a machine screw, not self-tapping – it requires pre-formed threads (nut or tapped component).

Typical uses:

Control panels and faceplates

Electrical & electronic covers where a flush finish is needed

Door plates, hinges, latches on sheet metal

Architectural trims / plates where protruding heads are not acceptable

2. When Should You Use CSK Phillips Machine Screws (vs Pan Head)?

Use SS CSK Phillips machine screws when:

You want the head flush with or slightly below the surface

The surface must be smooth – aesthetics, safety, or functionality (no snagging)

You have the ability to countersink the top component

Examples:

Front covers and operating panels

Nameplates on machinery

Hinges on sheet metal doors

Any application where someone’s hand or material slides over the surface

Use pan head instead when:

The sheet is very thin, and countersinking would weaken it

A small visible head is acceptable

You want faster fabrication with only clearance holes (no countersink step)

3. Environment & Stainless Grade Selection
a) By environment

A2 (SS 304), usually A2-70

For indoor & general outdoor industrial environments

Suitable for panels, machinery, electrical enclosures

Good balance of strength & corrosion resistance

A4 (SS 316), A4-70 or A4-80

For coastal, marine, poolside or chemical environments

Better resistance to chlorides, salt spray, many chemicals

Ideal for food & pharma, marine, chemical process equipment

SS 202

For dry indoor, non-critical applications only

Lower corrosion resistance than 304/316

Use only if cost is primary and customer accepts

b) Matching hardware

Match the screw grade with other visible fasteners (hinges, handles, trims)

In harsh environments, keep all exposed hardware A4 to avoid mixed corrosion performance

Mechanical Properties (Guide) – SS CSK Phillips Machine Screws

They follow the standard stainless steel fastener strength classes.

A2-70 (SS 304) – Standard Choice

Material: A2 stainless (≈ SS 304)

Strength class: 70

Minimum tensile strength: ~700 MPa

Proof (yield) strength: ~450 MPa

Typical applications:

General machine building

Electrical panels & enclosures

Fabricated structures in normal urban/industrial environments

A4-70 / A4-80 (SS 316) – High Corrosion Resistance

Material: A4 stainless (≈ SS 316)

Strength classes:

A4-70 → tensile ~700 MPa

A4-80 → tensile ~800 MPa (higher strength)

Use where:

Atmosphere is marine/coastal, chemically aggressive, or hygiene-critical

You need both high corrosion resistance and strength (e.g., A4-80 for more demanding joints)

SS 202 Machine Screws

Material: 200-series Cr-Mn stainless

Strength often adequate for many light applications

Corrosion resistance lower than 304/316 → best for dry indoor and non-critical uses only.

In most CSK-machine-screw applications, failure is governed more by bearing/countersink tear-out, nut/tapped-hole strength, and joint design than by ultimate tensile failure of the screw.

10. Quick Selection Cheat Sheet (Shop-Floor / Sales)

Environment

Standard indoor/outdoor → A2-70 (SS 304)

Coastal, marine, chemical → A4-70 / A4-80 (SS 316)

Dry, low-risk & budget-sensitive → SS 202 (if accepted)

Surface Requirement

Need flush, clean surface → CSK Phillips machine screw

Head can be visible → Pan Phillips or other head style

Diameter

Small plates/nameplates → M2–M3

General panels/hinges → M3–M6

Heavy plates/brackets → M8+

Length

Nut joint: parts + washers + nut + 1–3 threads out

Tapped joint: 1–1.5 × diameter engagement

Assembly Tips

Correct PH bit, straight alignment

Countersink at correct angle & depth

Use anti-seize on SS–SS threads where galling is a risk

Tighten until flush & snug, not over-pulled.
